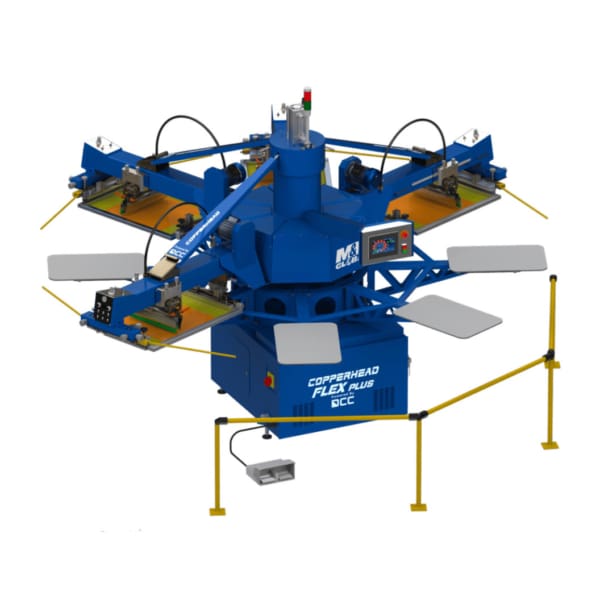

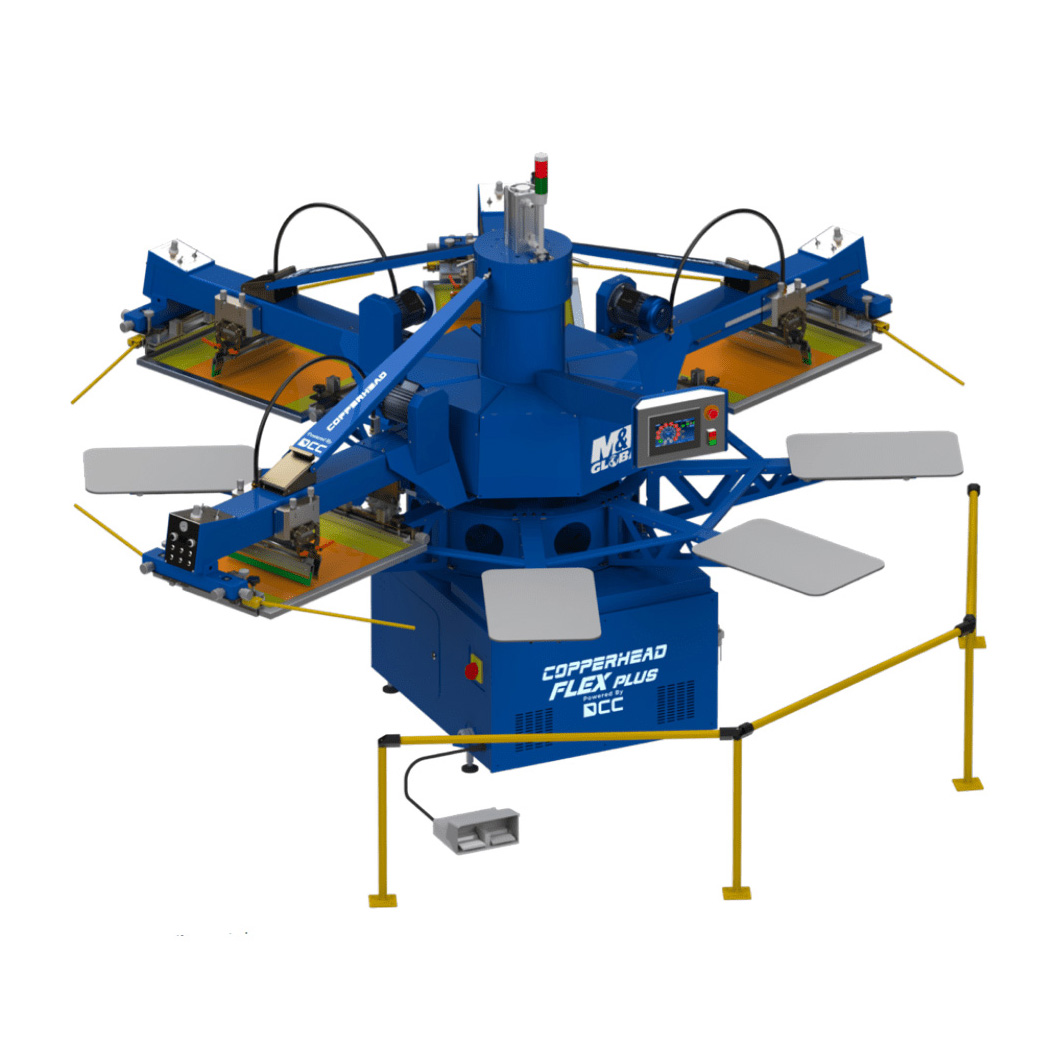

M&R Copperhead Flex-Plus

Description

Copperhead Flex-Plus

Standard Features:
Speed 720 impressions/hour
Squeegee Equaliser system
Carrousel Rotation-Both Clockwise & Anti-clockwise
4 Point Registration System
Individual Off Contact
Built-In Electrical Connection for Flash Cure
Mechanical Head Lifting for easy screen cleaning
Digital touchscreen control panel
Tool-free quick release pallet locks
Independent print/flood speed controls
Tool-free Squeegee/Floodbar angle adjustments
Pneumatic Screen Frame Lock
On-board Self Diagnostics

Specifications:

• Air: 7 Bar (102psi)
• Electrical: 400-440V, 3ph, 6.5A, 50hZ, 15.4kW
• Diameter: 392cm (154″)
• Maximum Frame Size: 23″x 31″
• Maximum image area: 16″x 20″
• Machine weight: 1,260kg
• Standard Pallet size: 16″x 22″
• Print heads/Colours: 4
• Print Stations: 8

What’s included?
1 Set of 43.9 Solid Aluminium Pallet w/Rubber up to (16 x 22″ / 41 x 55 cm)
1 Set of Squeegee holder with squeegee rubber up to (16″ / 41 cm)
1 Set of Floodbar up to (16″ / 41 cm)
Index & Skip Foot Pedal
Pneumatic Frame Locks
Front and Rear Micro Registration
Multi Print Mode Program
Print Stack Mode
Print-Start / Print-Finish mode
Front to Back/Back to Front- Squeegee Mode
Built-In port for Flash cure
Squeegee Pressure Regulator
Toolkit
