Description

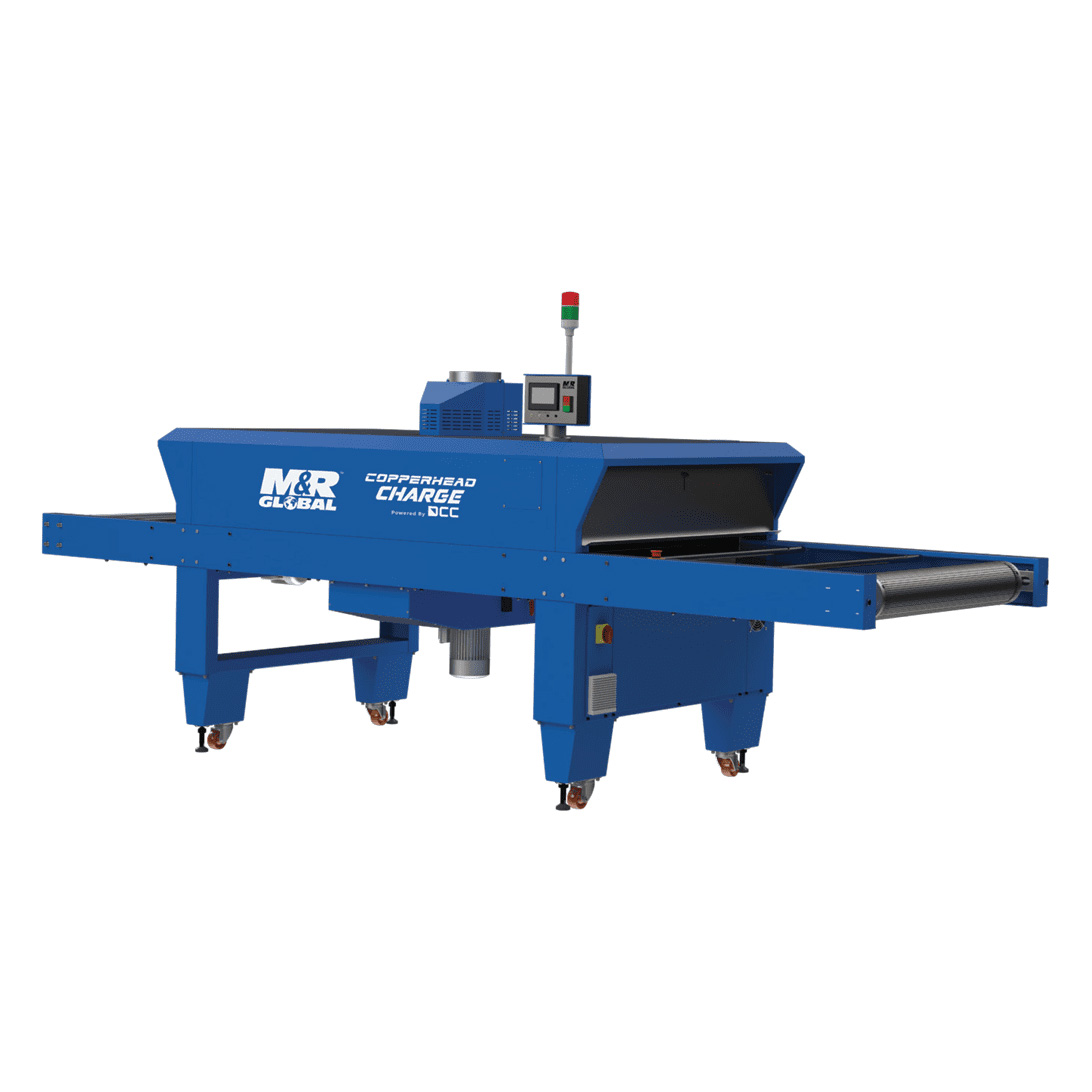

Copperhead Charge Dryer
The Copperhead Charge has combined the best curing technology with new innovation to create the ideal start-up to medium size shop dryer that can handle all your curing needs. The Charge’s unique design can easily cure waterbased, plastisol, and DTG prints with its advanced airflow system and edge-to-edge heat chamber. Watch your productivity soar while you stay comfortable because of the Charge’s Cool Skin technology that keeps the heat inside the dryer and the outside surface cool to touch. Patriot BeltTM with Sure TrakTM roller system helps to keep the belt in place. Digital belt speed readout makes it easy to duplicate conveyor dryer speed settings. Maintenance-free, brushless AC electric motor with variable-frequency drive provides reliable, accurate belt-speed control. The dryer also includes a manual belt crank allowing operators to rotate the belt manually to remove shirts in-case of power outages maximize your efficiency, and handle all your curing needs with the Copperhead Charge Forced Air Conveyor Dryer
Standard Features:
- Infrared radiant panel curing and forced air convection
- Up to 95% air is recirculated back in the heat chamber
- Nozzle Panel slides out for easy cleaning
- Easy-to-reach filters, belt replacement and lubrication points
- Patriot Belt with Sure Trak roller system helps to keep the belt in place
- Icon-based Touch screen control Panel
- PID based temperature controller
- Control Panel can be swivelled as per operator convenience
- Automatic Heat-up/ Cool-Down Mode
- Unique Radiant Panel placement along with Air knives to ensure Edge to Edge Curing
- Insulation system that helps to keep the heat chamber isolated which leaves the conveyor dryer skin cool to the touch
- Tool-free shutter adjustment
- Caster wheels facilitate easy movement of the dryer
- Can be used to cure Water-based, Discharge, Plastisol & Direct-to-Garment Prints
Available Models:
- 24″ belt width | 6′ Heat chamber | 4′ Infeed & 3′ Outfeed
- 24″ belt width | 12′ Heat chamber | 4′ Infeed & 3′ Outfeed
- 36″ belt width | 6′ Heat chamber | 4′ Infeed & 3′ Outfeed
- 36″ belt width | 12′ Heat chamber | 4′ Infeed & 3′ Outfeed
- 48″ belt width | 8′ Heat chamber | 4′ Infeed & 4′ Outfeed
- 48″ belt width | 16′ Heat chamber | 4′ Infeed & 4′ Outfeed
- 60″ belt width | 8′ Heat chamber | 4′ Infeed & 4′ Outfeed
- 60″ belt width | 16′ Heat chamber | 4′ Infeed & 4′ Outfeed
(Long heat chamber models ideal for DTG printing)
Electric Requirements: 3 Phase – 400-440V – 20-130Amp
More Information.
If you have any questions please feel free to get in touch by phone on 0044 (0)1562 829 009, Email or on our Webchat.
