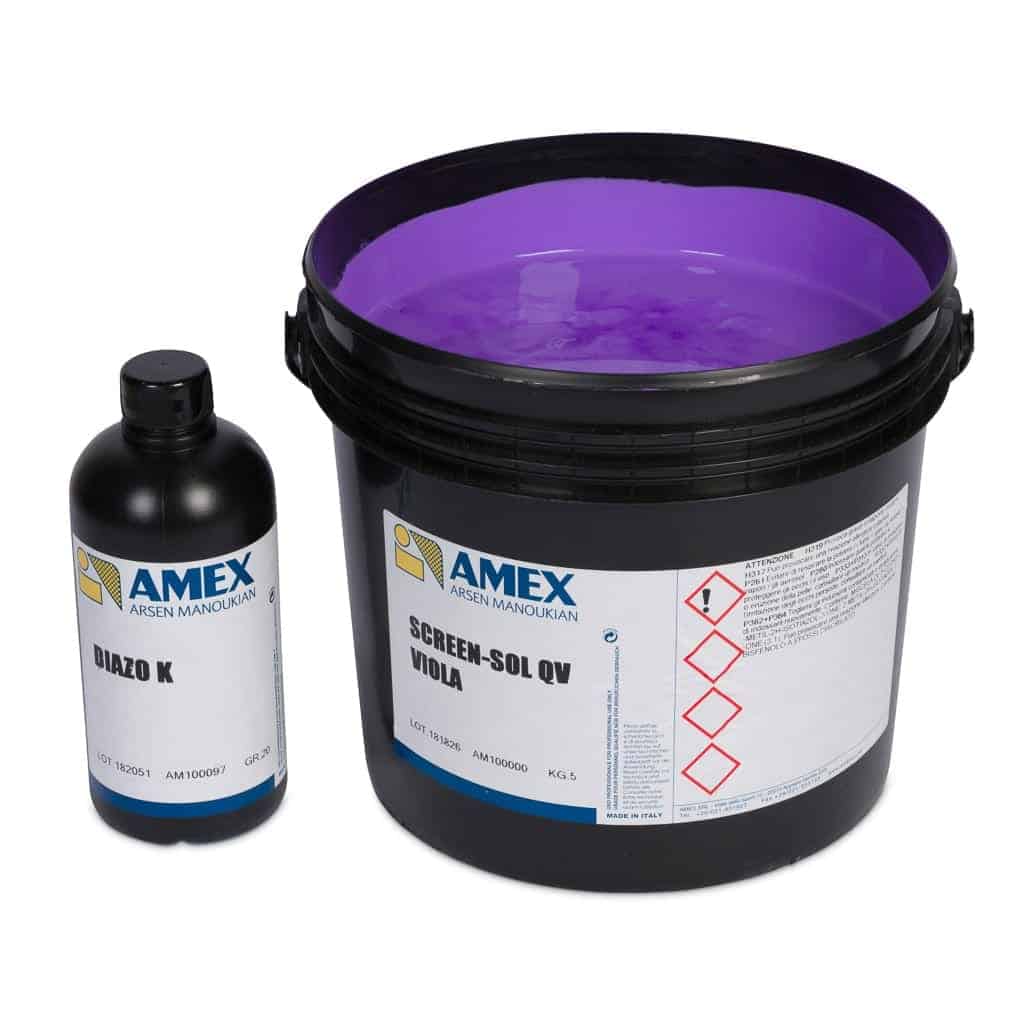

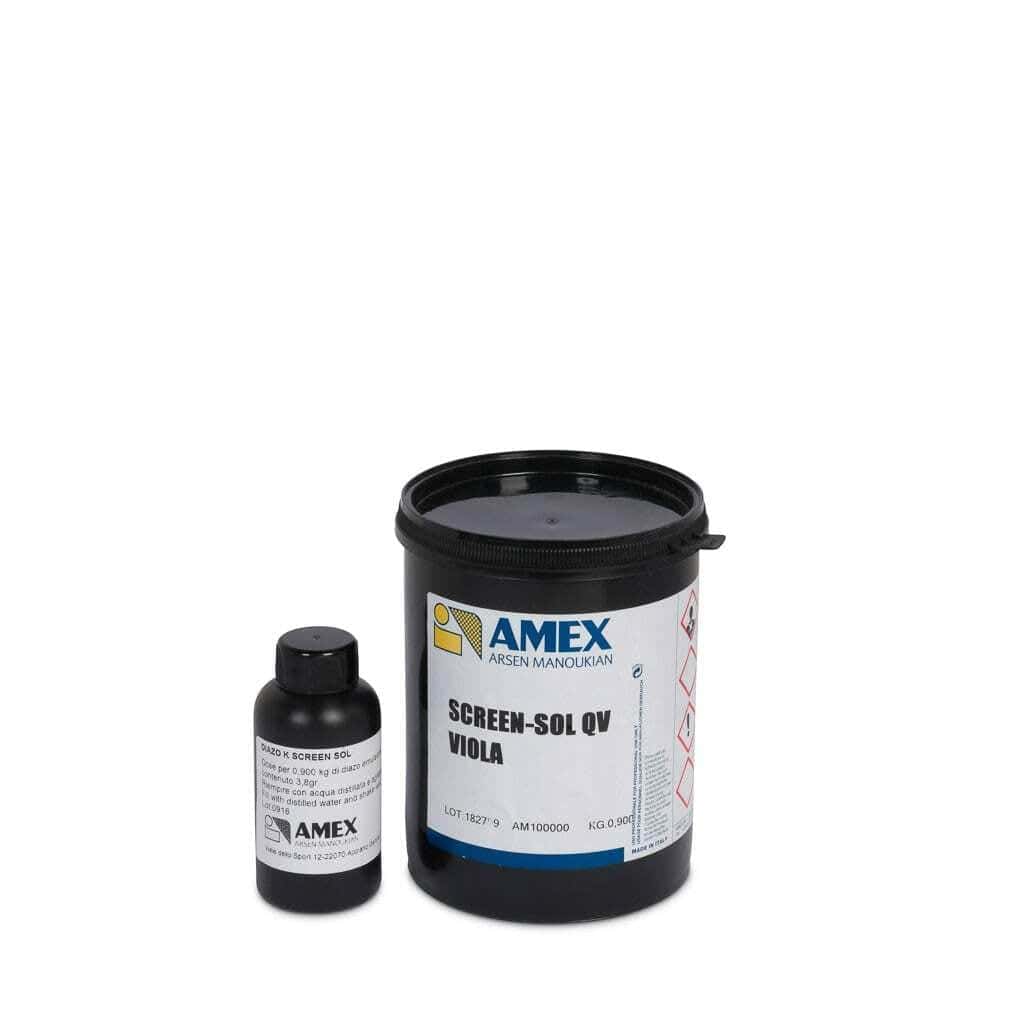

Screen Sol QV Emulsion with sensitiser
£15.09 – £68.22 £15.09 + VAT
-
Guaranteed secure & safe checkout.
Size chart
Description
This is also a dual-cure photo emulsion for plastisol ink. the emulsion is violet in colour. High definition for screens up to 120T/305. It very good resistance to both plastisol and waterbased inks. Excellent stability on the screen. Suitable to work with any kind of light source. Easy reclaiming of the screen. Easy to use. Sensitize with diazo, add a small amount of water to the bottle with diazo in in order to dissolve the powder. The emulsion includes the required sensitiser and works well for beginners and advanced printers.
Check out this blog post to see which emulsion is best for you
Features
Screen Chem Catalyst - (makes emulsion permanent)
How to use:
Add a small amount of water to diazo-sensitiser and shake well. Next, mix the whole dose with SCREEN-SOL QV, stir well and then let it settle for approximately 2 hours to eliminate air bubbles or overnight would be preferred. Since it is a polymer emulsion we recommend you work in an area with low to little light, not under a direct light or in sunlight.
Application:
We recommend you always degrease the mesh. As a general indication, we suggest you apply 1 or 2 coats of emulsion on the external face of the screen and 1 or 2 coats on the internal face, wet on wet, then a final dry coat on the inside of the screen to push the emulsion to the back of the screen.
Drying:
We advise that you dry the screen horizontally in a ventilated drying cabinet, at 30-40°C for 40-60 minutes depending on the coating thickness.
Exposure
Lamp type, distance from lamp to screen, mesh type and coating thickness can affect exposure time. To determine the correct exposure time, we suggest you conduct some tests with an exposure calculator. Our suggestion: Lighting halogen: 5000W Application: 1-2 internal coats, 1-2 external coats Mesh 120T white 60 sec.
Pot life
If stored in its original container at a temperature between 15 and 25°C this product will preserve its characteristics for at least 1 year from the date of production, then once mixed it will preserve for 6-8 weeks from mixing. As always, these time and temperatures are guidelines, many aspects can affect the exposure times.
Clean up
Use Franmar Strip-E-Doo or Easiway 500 to remove this emulsion. Use Easiway Supra for use with a dip tank only.
Videos
How to wash out emulsion for exposure
Blogs:
Which emulsion is best for you?
More information
If you would like more information then please give us a call on 0044 (0) 1562 829009 or use our Webchat or Email
Safety Data and Technical sheets click Here
This is also a dual-cure photo emulsion for plastisol ink. the emulsion is violet in colour. High definition for screens up to 120T/305. It very good resistance to both plastisol and waterbased inks. Excellent stability on the screen. Suitable to work with any kind of light source. Easy reclaiming of the screen. Easy to use. Sensitize with diazo, add a small amount of water to the bottle with diazo in in order to dissolve the powder. The emulsion includes the required sensitiser and works well for beginners and advanced printers.
Check out this blog post to see which emulsion is best for you
Features
- High definition
- High resistance to inks (plastisol, waterbased and solvent)
- Easily reclaimable
- Easy to use
- Suitable for UV light or LED
Screen Chem Catalyst - (makes emulsion permanent)
How to use:
Add a small amount of water to diazo-sensitiser and shake well. Next, mix the whole dose with SCREEN-SOL QV, stir well and then let it settle for approximately 2 hours to eliminate air bubbles or overnight would be preferred. Since it is a polymer emulsion we recommend you work in an area with low to little light, not under a direct light or in sunlight.
Application:
We recommend you always degrease the mesh. As a general indication, we suggest you apply 1 or 2 coats of emulsion on the external face of the screen and 1 or 2 coats on the internal face, wet on wet, then a final dry coat on the inside of the screen to push the emulsion to the back of the screen.
Drying:
We advise that you dry the screen horizontally in a ventilated drying cabinet, at 30-40°C for 40-60 minutes depending on the coating thickness.
Exposure
Lamp type, distance from lamp to screen, mesh type and coating thickness can affect exposure time. To determine the correct exposure time, we suggest you conduct some tests with an exposure calculator. Our suggestion: Lighting halogen: 5000W Application: 1-2 internal coats, 1-2 external coats Mesh 120T white 60 sec.
Pot life
If stored in its original container at a temperature between 15 and 25°C this product will preserve its characteristics for at least 1 year from the date of production, then once mixed it will preserve for 6-8 weeks from mixing. As always, these time and temperatures are guidelines, many aspects can affect the exposure times.
Clean up
Use Franmar Strip-E-Doo or Easiway 500 to remove this emulsion. Use Easiway Supra for use with a dip tank only.
Videos
How to wash out emulsion for exposure
Blogs:
Which emulsion is best for you?
More information
If you would like more information then please give us a call on 0044 (0) 1562 829009 or use our Webchat or Email
Safety Data and Technical sheets click Here
Size:
1kg, 5kg
