Description

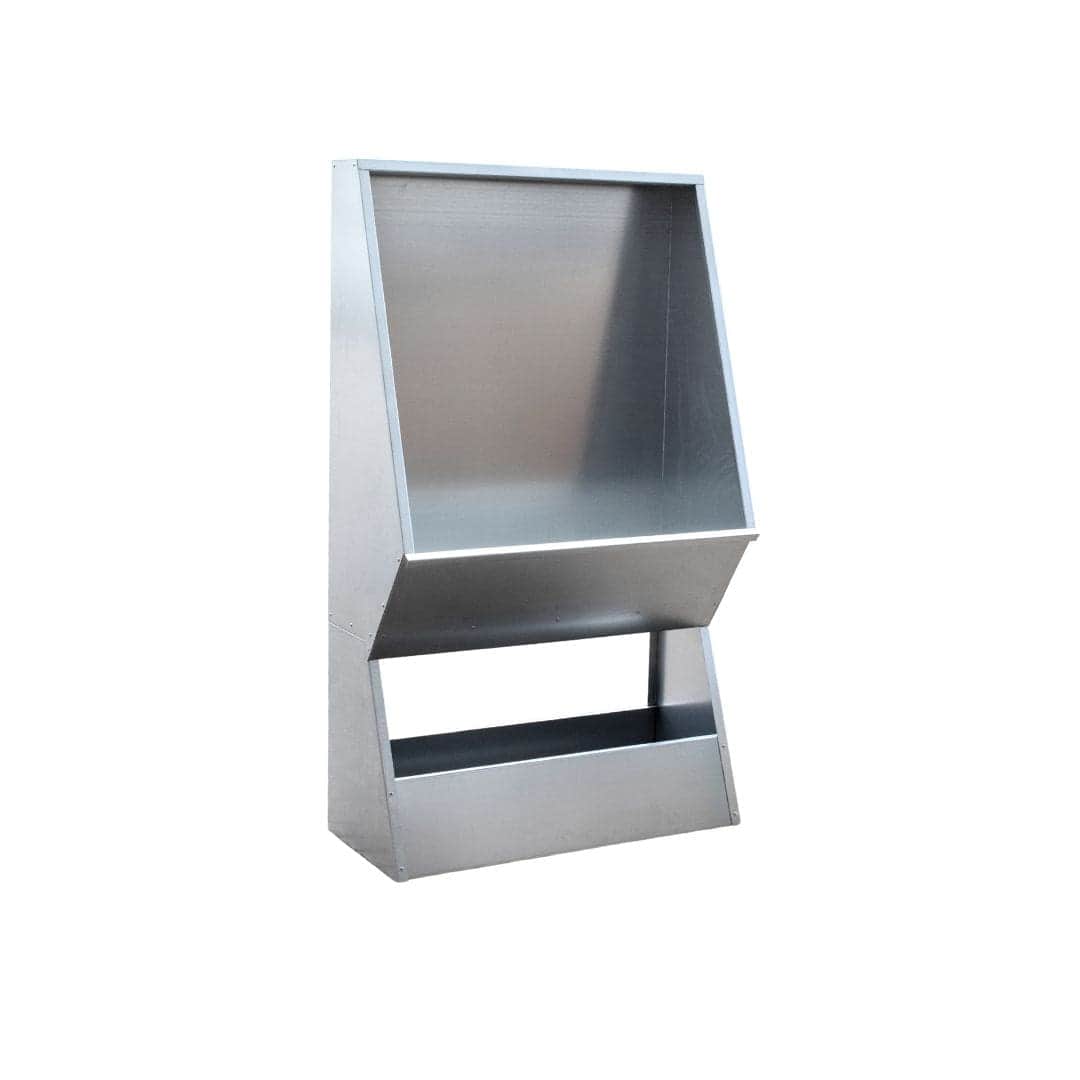

Screen Printing Washout booth All of our washout booths are made to an excellent standard here in the UK. Made using high quality galvanised sheet metal, riveted and sealed, with a centre drain at the bottom which can connect to a standard sink trap. Waste connection size is 1.5 inch BSP.

This booth also comes with a 25mm x 25mm lower grid.

Please note: Cost of this item does not include shipping - if you require delivery please contact us for a cost -

nick@screenprintworld.co.uk or call us on 01562 829 009.

Features

• They are manufactured from high quality galvanised steel which is twice as thick as similar units, this makes it far more rigid and your wash booth will have a longer more productive life in your print shop.
• Where you are most likely to point high pressure water, is at the back in the corners, we have bent the steel in this area which makes it 100% water proof, there are no silicone joints in this area which can wear over time and begin to leak.

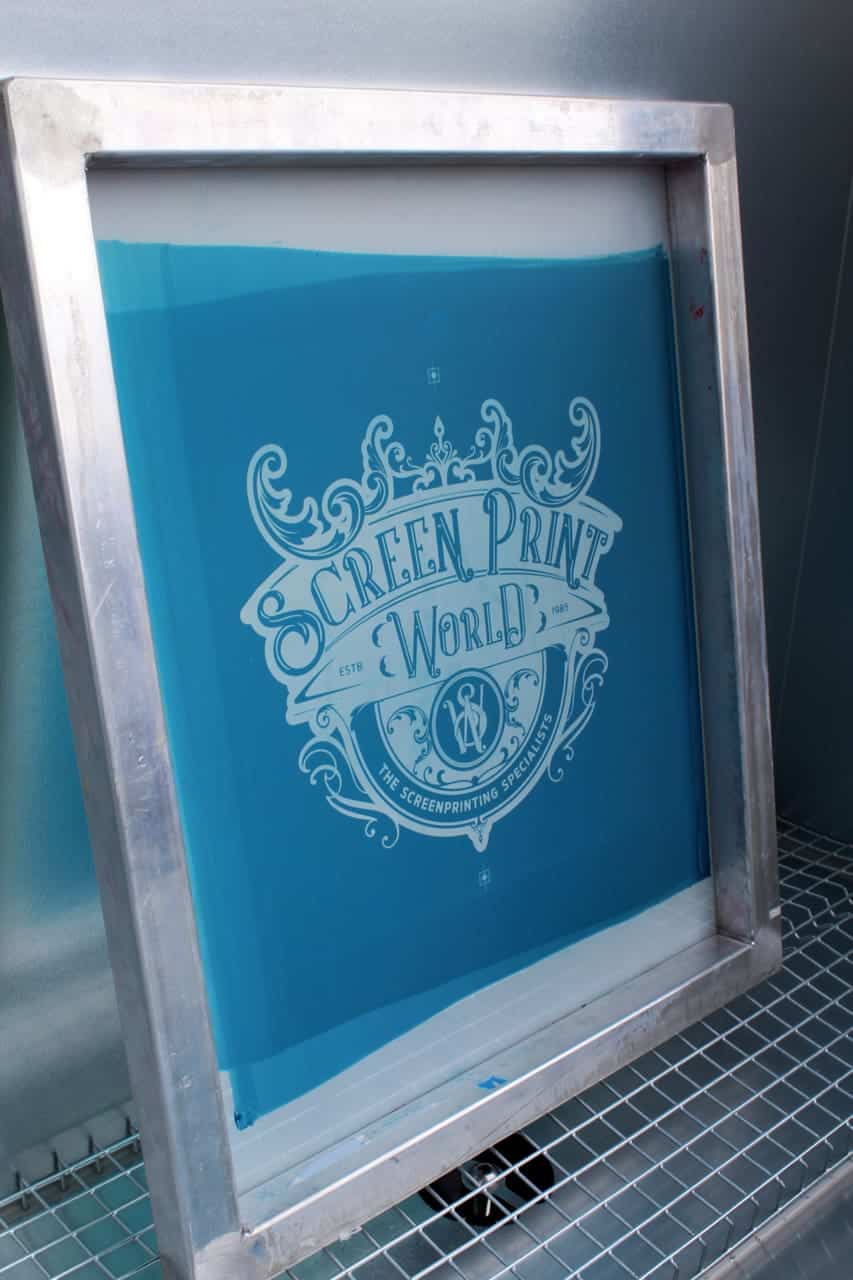

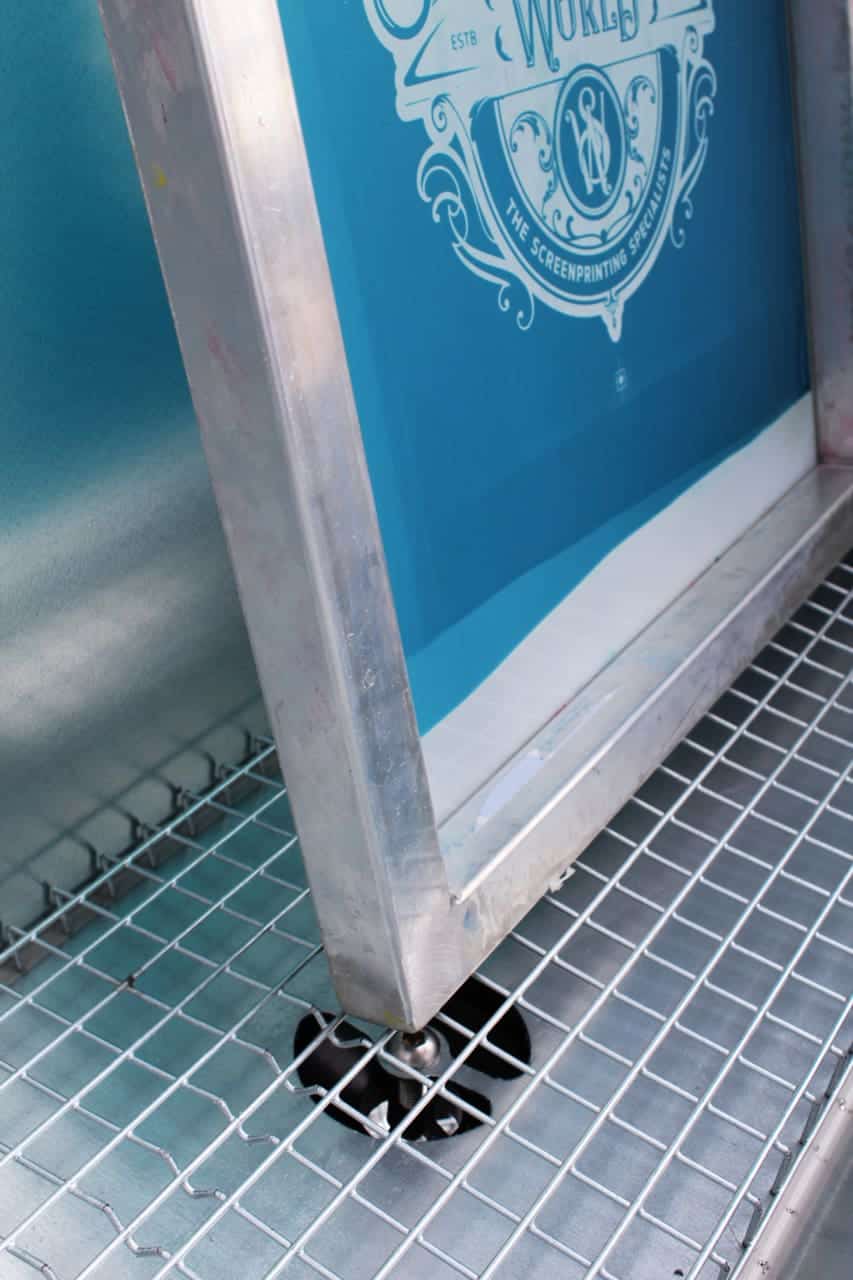

• We have a screen holder notched into our steel base grid, which helps you to keep the screen in place while blasting it with water - very handy.

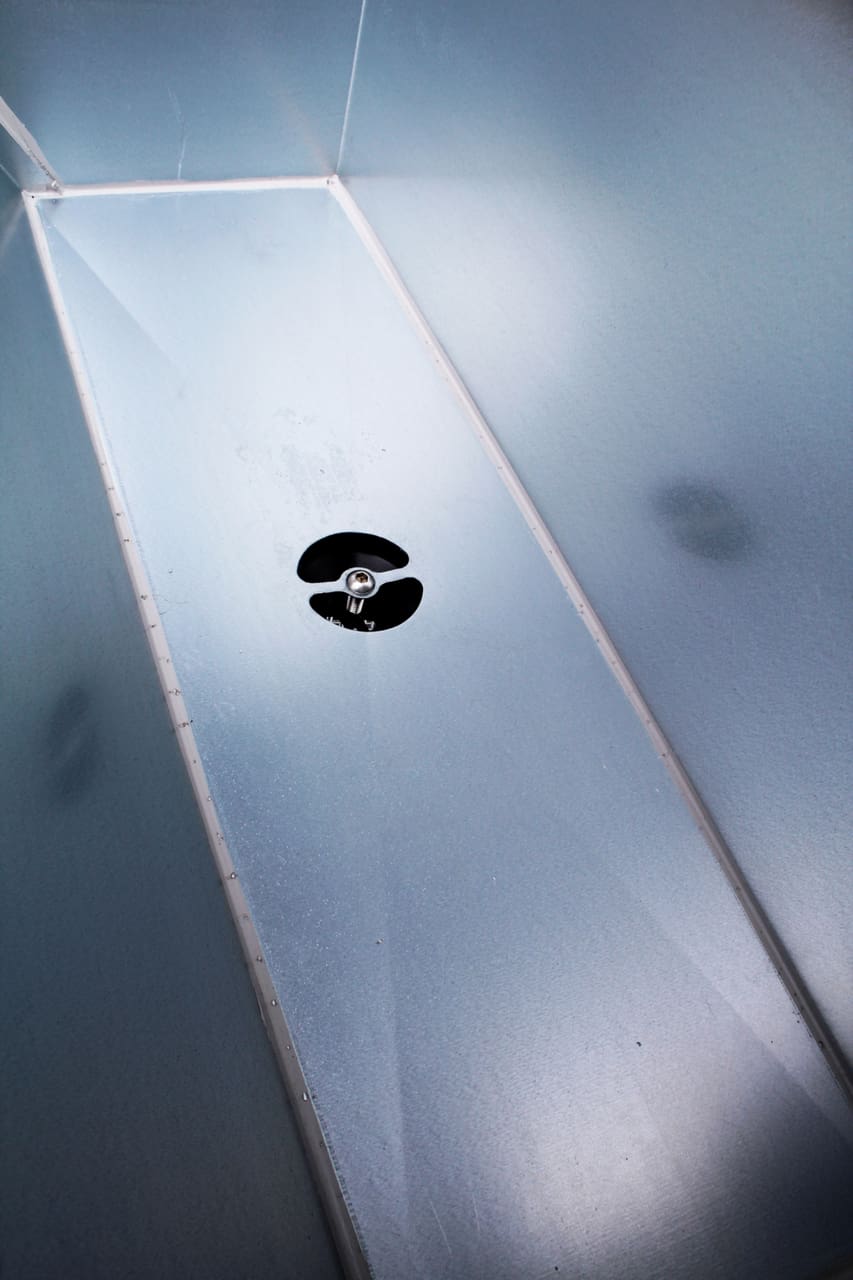

• The plug hole is laser cut into the base of the unit and then the plug is attached underneath this stops the plug hole leaking long term, and makes it easy to clean.
• Very few exposed rivets, making the inside of the booth snag free and less likely to damage your valuable screens.
  The entrance of the booth has been softened with bent over corners so you don’t rip any screens.

Why buy our Washout Booths? Read More.

Dimensions

100cm or 150cm width

• 50cm depth at the lowest point and 15cm at the top
• 170cm over all height
• Inside is 1m, or 1.5m, x 1.1 m height

Optional Extras

• Back-splash - helps keeps you and your Printshop clean
• Backlight LED panels. (available on 1m unit only)
• A comprehensive selection of sizes from 70cm table top unit to a 1.5m..
• Add a Filtration system, S-Green filter system .

For further information

If you have any questions please feel free to get in touch by phone on 0044 (0)1562 829 009, Email or on our Webchat.
