Squeegee Sharpener
-
Guaranteed secure & safe checkout.
Size chart
Description
Short-cut The small format, manual precision sharpener for screen printing squeegees 20” (51cm) or less. This portable table-top design fits anywhere and comes equipped with a single industrial strength diamond sharpening wheel.
Sharpening Length: 20”(51cm).
Sharpening Profile: A single straight/square-edge wheel is supplied as standard (other profiles and custom wheels available).
Diamond Wheel Grit: #120 supplied standard (other grit sizes available).
Material removal: Recommended rate not more than 0.0025’’ (0.05-0.10mm) in a single pass.
Blade Height Tolerance: +/- 0.006’’ (0.15mm) measured from end to end.
Power Requirement: DSC-020 = 115-120v AC 2Amp DSC-220 = 220-230v AC 1Amp – Please specify according to local requirements.
Physical Size (Table top unit) : Length: 30”(76cm) Height: 14”(36cm) Width: 12”(30cm)

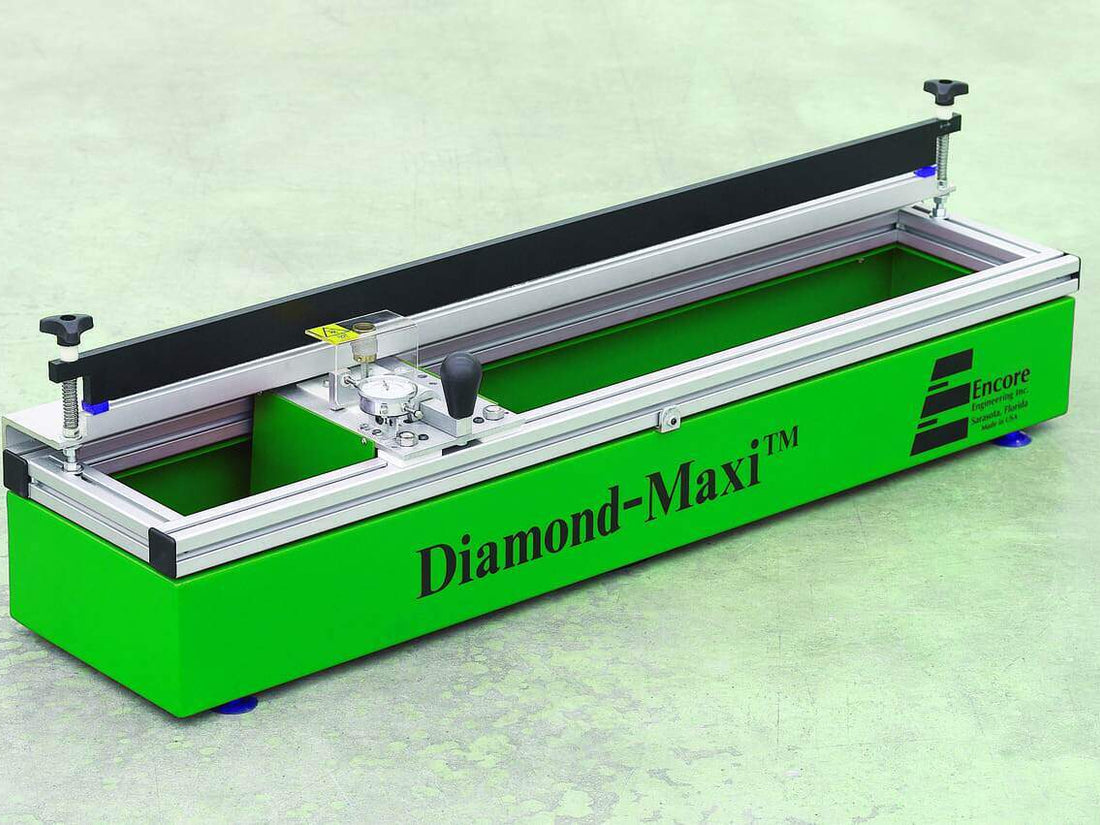

Maxi A precision medium format sharpener for squeegees 38”(97cm) or less. This portable table-top design fits anywhere and comes equipped with two industrial strength diamond sharpening wheels.
Sharpening Length: 38” (97cm).
Sharpening Profile: Two straight/square-edge wheels supplied as standard (other profiles and custom wheels available).
Diamond Wheel Grit: #120 and #230 grit supplied standard (other grit sizes available).
Material removal: Recommended rate not more than 0.0025’’ (0.05-0.10mm).
Blade Height Tolerance: +/- 0.006″ (0.15mm) measured from end to end.
Power Requirement: 115-120v AC 2Amp (220-230v AC 1Amp optional).
Physical Size (Table top unit): Length: 48″ (122 cm) Height: 46″ (117 cm) Width: 27″ (69 cm)
More Information.
If you have any questions please feel free to get in touch by phone on 0044 (0)1562 829 009, Email or on our Webchat.
- Sharpens a wide range of squeegee materials, including single and multiple durometer.
- Uniform grinding pressure and adjustment for material removal.
- Secures squeegee by the blade during sharpening.
- Accommodates various squeegee holders and handles.
- Includes two indestructible diamond wheels.
- Two options as per below.
Short-cut The small format, manual precision sharpener for screen printing squeegees 20” (51cm) or less. This portable table-top design fits anywhere and comes equipped with a single industrial strength diamond sharpening wheel.
Sharpening Length: 20”(51cm).
Sharpening Profile: A single straight/square-edge wheel is supplied as standard (other profiles and custom wheels available).
Diamond Wheel Grit: #120 supplied standard (other grit sizes available).
Material removal: Recommended rate not more than 0.0025’’ (0.05-0.10mm) in a single pass.
Blade Height Tolerance: +/- 0.006’’ (0.15mm) measured from end to end.
Power Requirement: DSC-020 = 115-120v AC 2Amp DSC-220 = 220-230v AC 1Amp – Please specify according to local requirements.
Physical Size (Table top unit) : Length: 30”(76cm) Height: 14”(36cm) Width: 12”(30cm)
Maxi A precision medium format sharpener for squeegees 38”(97cm) or less. This portable table-top design fits anywhere and comes equipped with two industrial strength diamond sharpening wheels.
Sharpening Length: 38” (97cm).
Sharpening Profile: Two straight/square-edge wheels supplied as standard (other profiles and custom wheels available).
Diamond Wheel Grit: #120 and #230 grit supplied standard (other grit sizes available).
Material removal: Recommended rate not more than 0.0025’’ (0.05-0.10mm).
Blade Height Tolerance: +/- 0.006″ (0.15mm) measured from end to end.
Power Requirement: 115-120v AC 2Amp (220-230v AC 1Amp optional).
Physical Size (Table top unit): Length: 48″ (122 cm) Height: 46″ (117 cm) Width: 27″ (69 cm)
More Information.
If you have any questions please feel free to get in touch by phone on 0044 (0)1562 829 009, Email or on our Webchat.
