Description

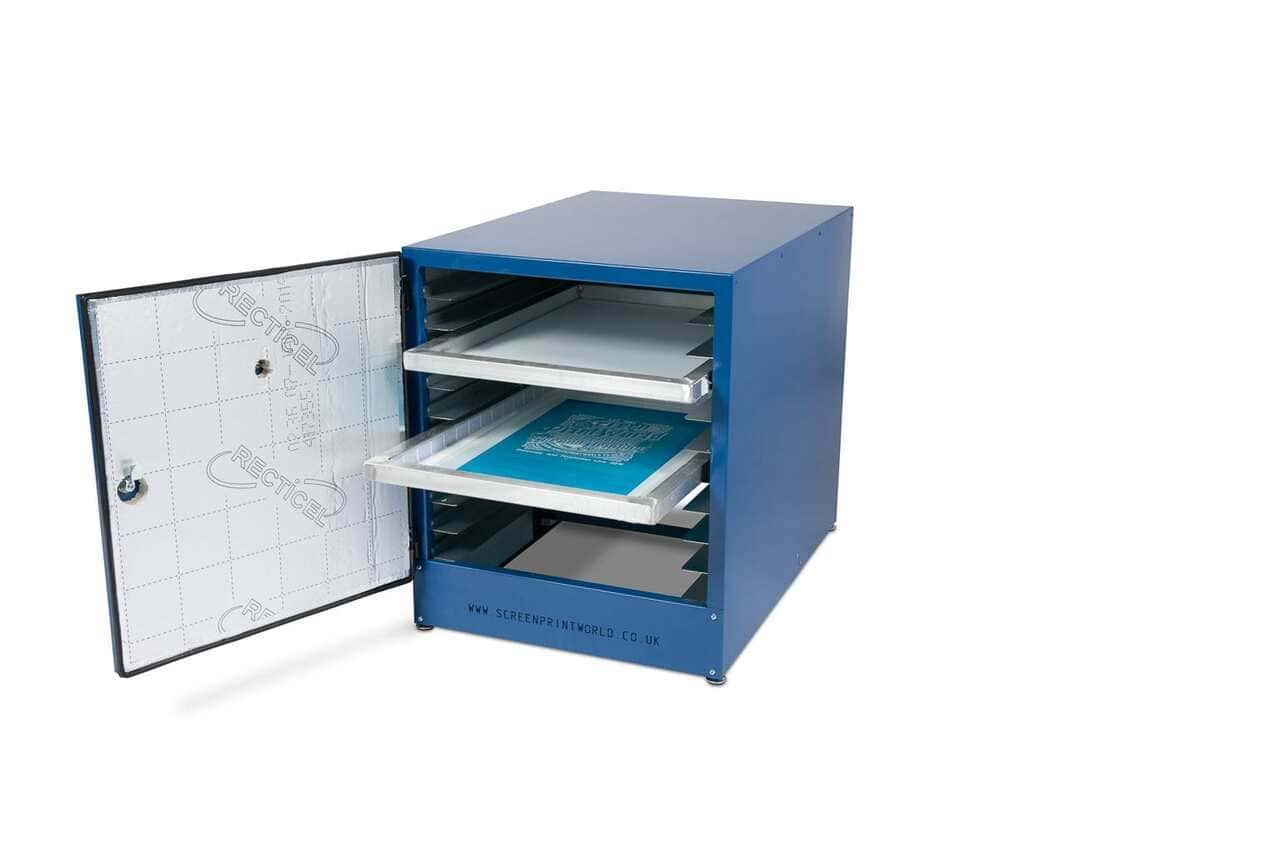

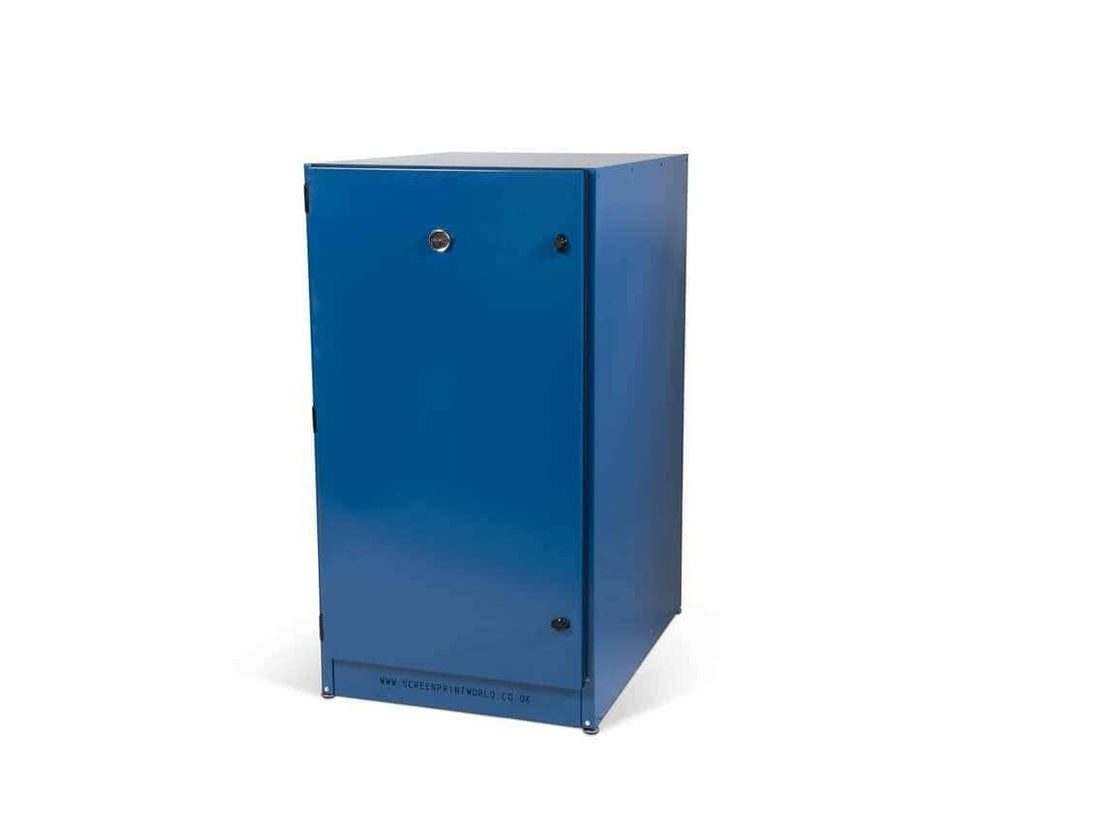

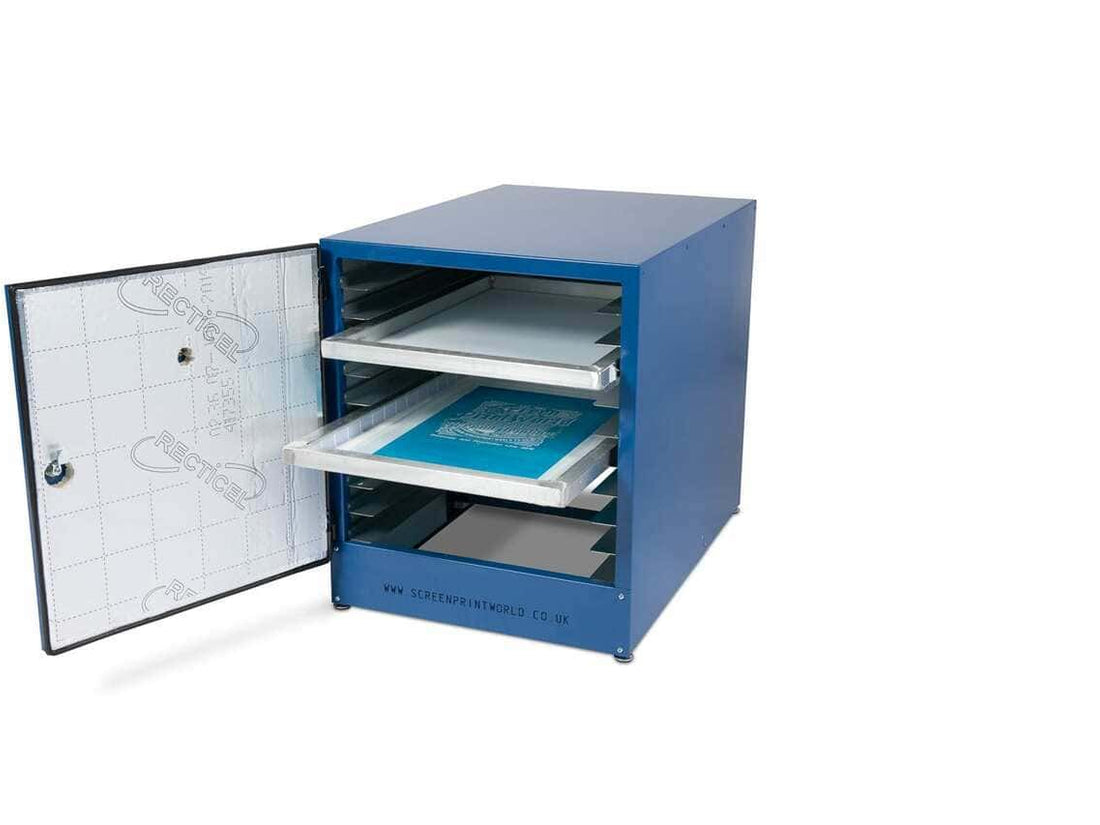

Our new Screen Printing Drying Cabinets are fully insulated to retain heat and vented to allow the heat to circulate within. While our unique heat deflector has been designed and manufactured to our specifications based on a lifetime of experience. This makes sure that each unit evenly distributes and circulates heat to rapidly dry your screen in the minimum time possible. These new units also have a temperature gauge to monitor the temperature within the cabinet. Plus, air tight sealing doors prevent heat escaping allowing your screens to dry quicker.

Features

• This Screen Printing Drying Cabinet model fits screens sizes of 20" x 24" or 23” x 31”/36”, both 10 screen and 20 screen models are available.
• Typically takes 20-30 mins to dry a screen with normal coating of emulsion Make sure the cabinet is level. Do not use an extension lead with the heater.
• Please make sure the heater at the rear is situated outside of the cabinet with just the front of the heater at the back of the cabinet where the hole is cut.
• Therefore, preventing the item overheating and prolonging the life of the heater, it will also increase the airflow to dry the screens quicker.
• Please do not block the vent on the rear of the cabinet as this will decrease the air flow.
• Remove any plastic coating on the cabinet before switching on. Each cabinet comes complete with a convenient and easily removable 3kw fan heater which can be changed to suit your individual requirements.

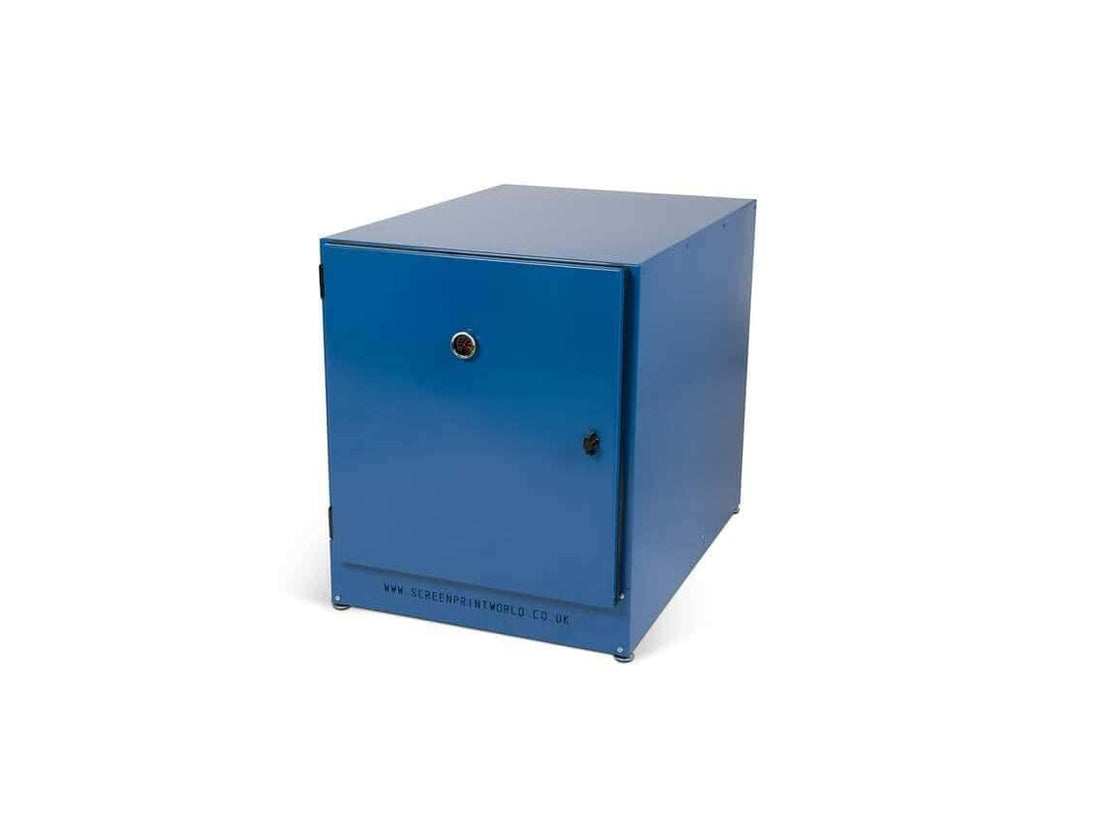

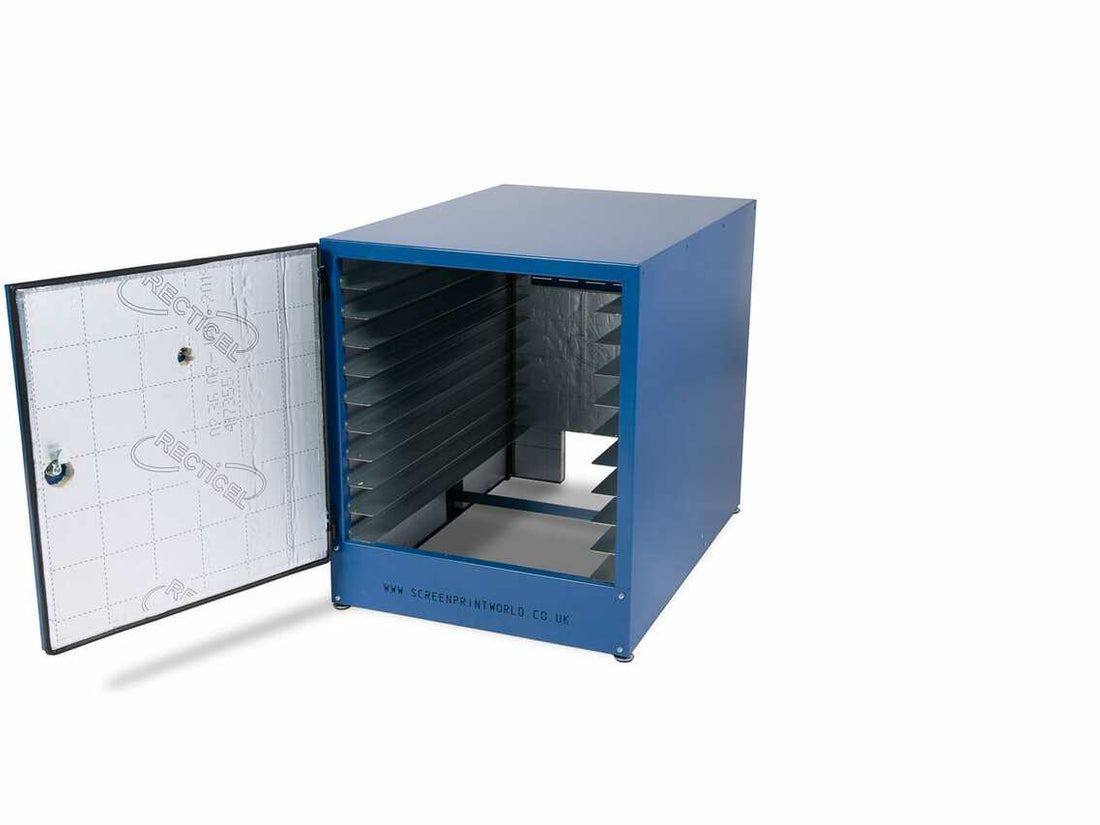

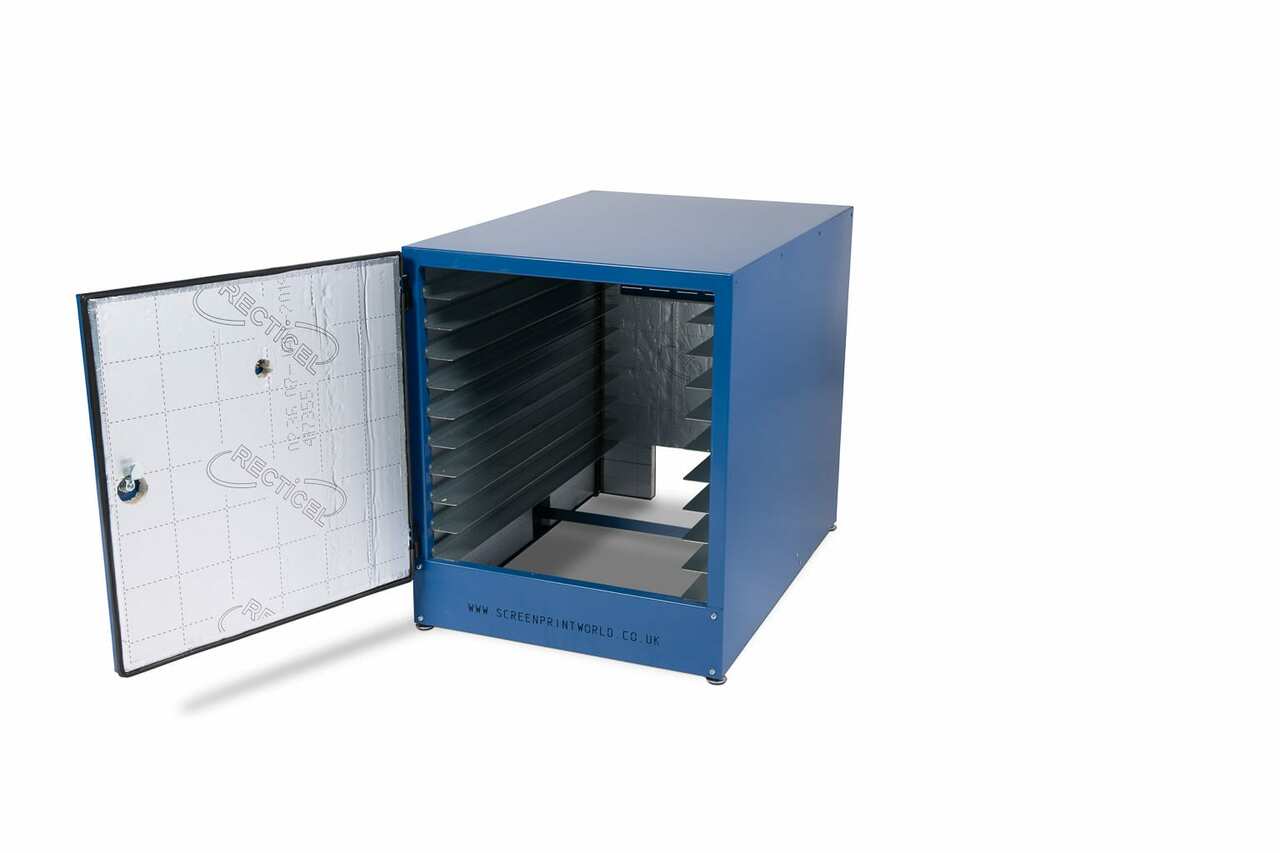

• 10 Screen: 30”(w) x 39”(d) x 32”(h)

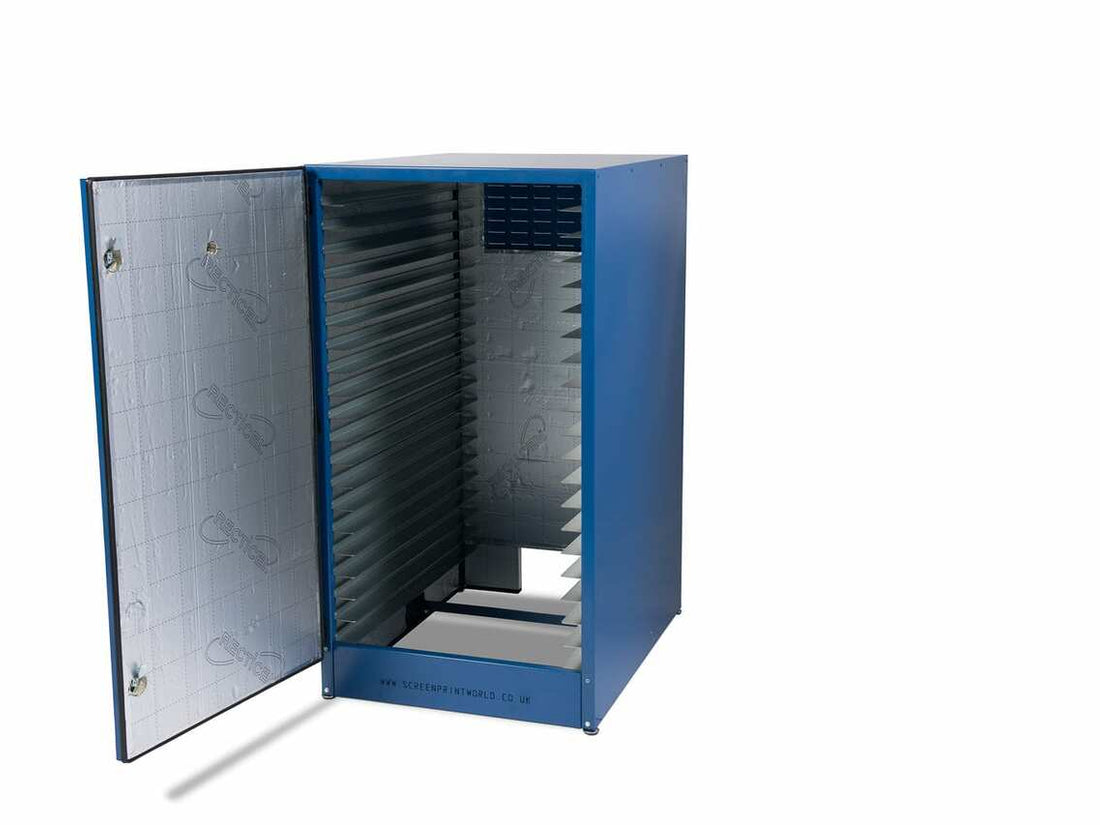

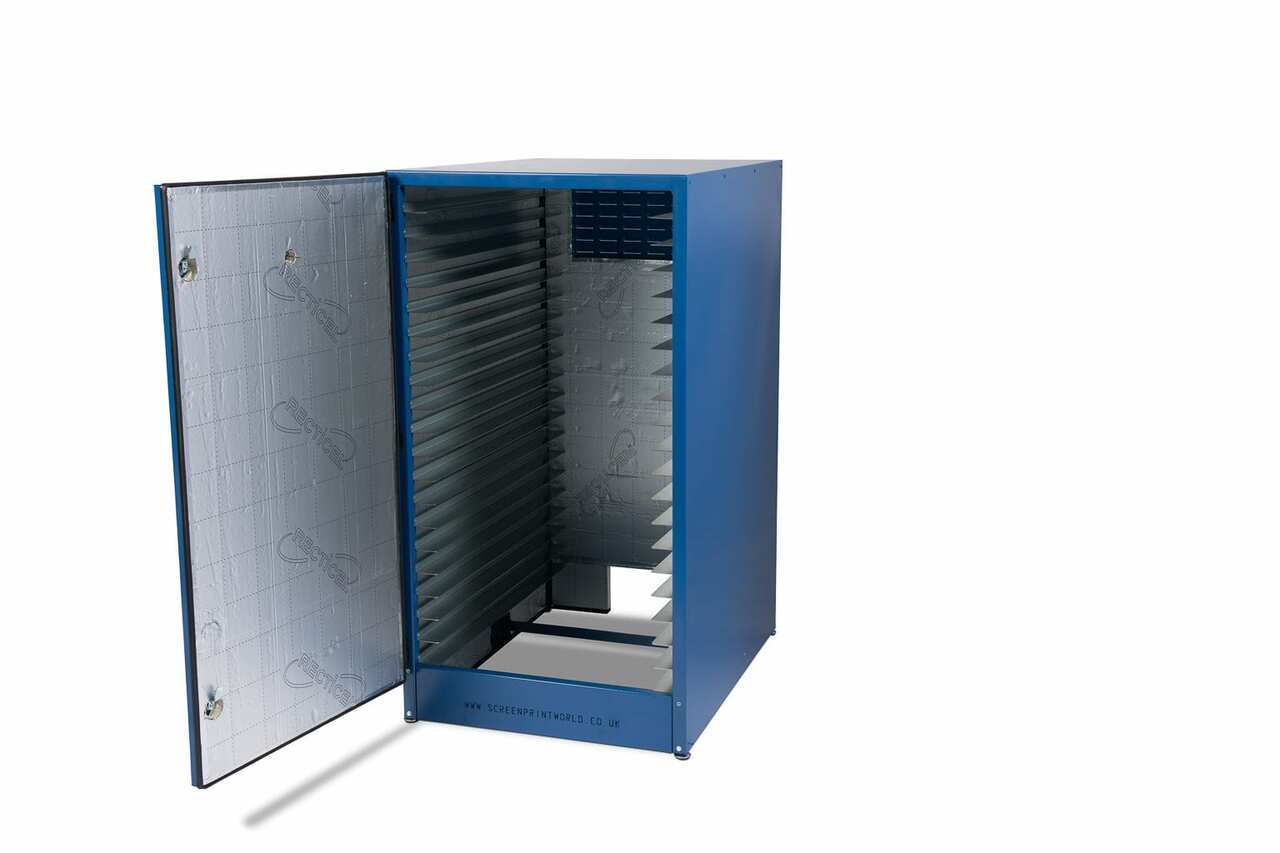

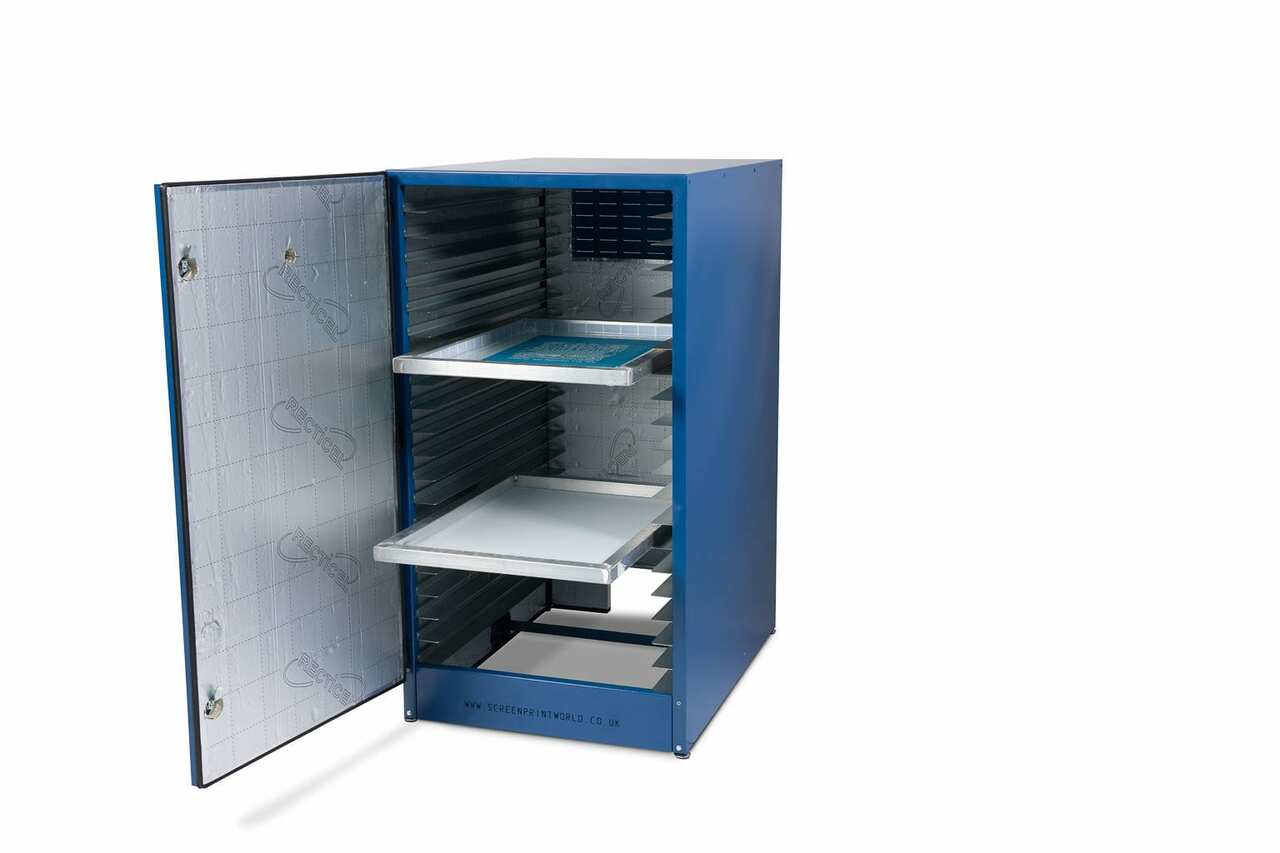

• 20 screen: 30”(w) x 39”(d) x 56”(h)
• 2 Heat Settings: 1000W and 2000W
• Power supply: 220-240V - 50hZ

More Information.

If you have any questions please feel free to get in touch by phone on 0044 (0)1562 829 009, Email or the Webchat.
