Description

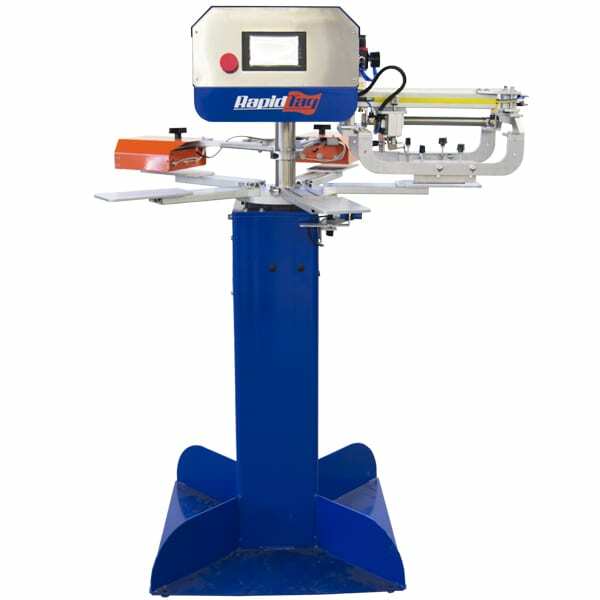

Originally designed for printing tagless garment labels, the LP1 has adapted itself to printing promotional products and other odd shaped products & components. The LP1 is our most affordable model and still one of the best sellers.

Features

• Parts Sensor (no product no print)
• 9 x 20” maximum screen size (able to put 3 images on one screen: example S, M, L)
• Servo Indexer
• Adjustable Stroke and flood speed
• Squeegee Angle Adjustment
• Stroke Length adjustment
• Parts Counter
• High Density Flash Cure Units
• Machine can be customized for different application
• Dwell set up
• Index Speed Set up
• Curing Time Set up
• Touch Screen

Specifications

• 5x Stations
• 1x Print Heads
• 2x High Density Flash Cure Units
• Max Image Area 6” x 6 ” inch (15cm x 15cm)
• Standard Pallet Size 4” Wide x 8 ” Long (10 cm x 20 cm)
• Standard Frame Size 9” x 20” (22 cm x 50 cm)

Dimensions

• Machine is 36″ in diameter about 55″ tall
• Standard Pallet Size 4 ” wide x 8 ” long
• Standard Flash Cure Size 6” Inch wide
• Max Image Area 6” x 6 ” inch

Requirements

• Power
• Single Phase
• Air
• Clean dry air
• 90-110 psi

More Information.

If you have any questions please feel free to get in touch by phone on 0044 (0)1562 829 009, Email or on our Webchat.
