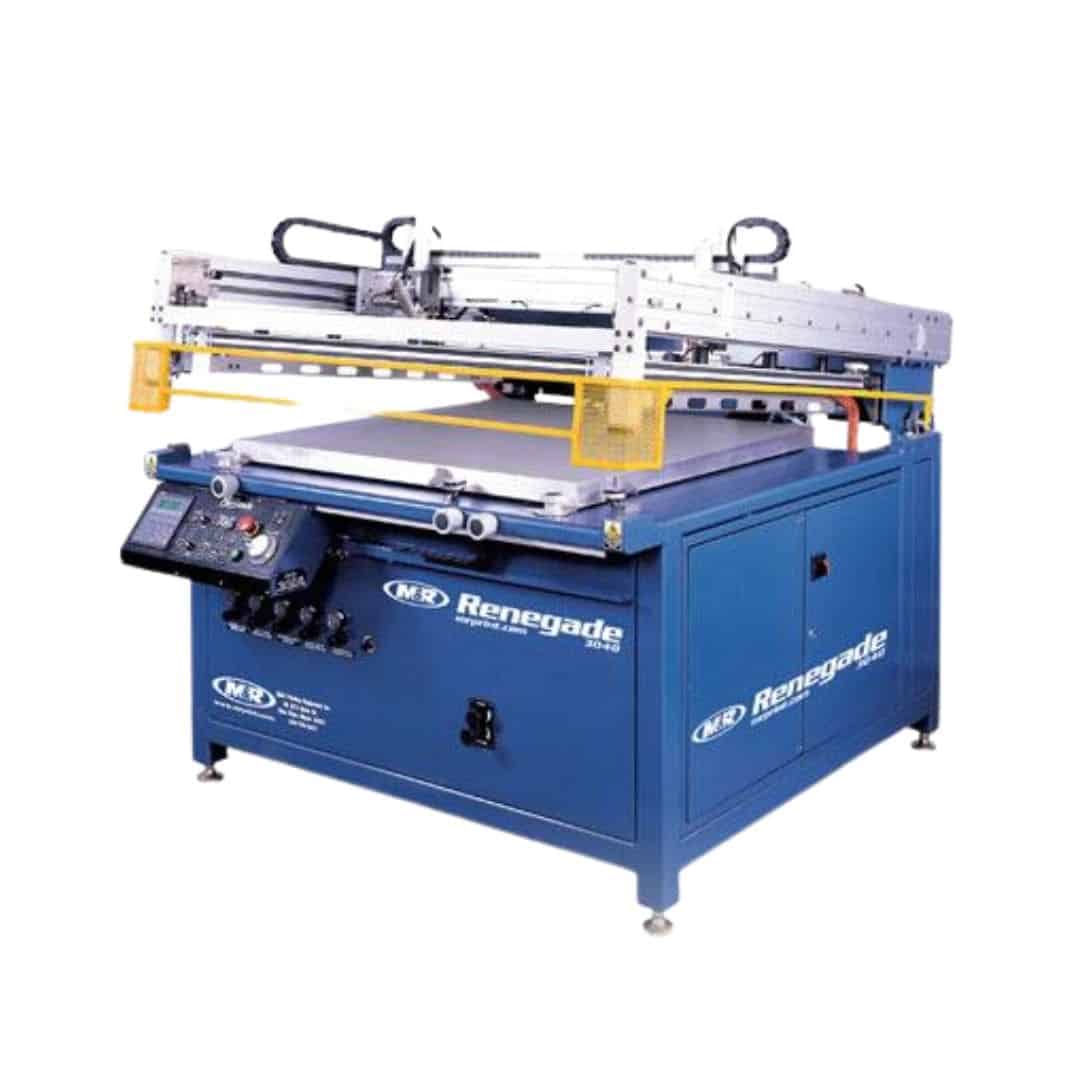

Renegade™ is the most compact press in the Renegade Series. Designed for high line-count four-color process printing, Renegades produce exceptional results by allowing pressure to be focused on the image area. Standard features include repositionable squeegee/floodbar pressure cylinders and Job Recall™, which allows operators to store settings like peel ratio, dwell time, and start and duration times for blowback and vacuum. These settings can be recalled later for repeat jobs—or for any jobs requiring similar settings—significantly reducing setup times.

Cutting-edge microprocessor technology and sophisticated operator controls make Renegade easy to operate. There’s a production speed monitor to ensure more accurate job costing; dial indicators for vacuum bed adjustments in .0025 cm (.001”) increments; and an electronically adjustable ink retrieval system to keep ink in the print area. Maintenance-free, brushless AC electric motors with variable-frequency drives ensure smooth, precise operation. Tool-free four-corner off-contact settings allow quick and accurate screen leveling, and front screen loading simplifies and speeds screen changes. Renegade provides up-front control of SoftVac™, M&R’s whisper-quiet, high-volume vacuum system. Vacuum and blowback are each independent and adjustable. Options include M&R’s dripless squeegee attachment, which automatically flips to the opposite direction against the front of the floodbar, and Renegade’s stepper-motor peel system, which provides flat-flood capability and single-point fingertip control. Sentry™, M&R’s fully adjustable gripper-style takeoff, adapts to virtually any substrate.



https://youtu.be/katWjOUm-4g

Renegade Brochure



More Information.
