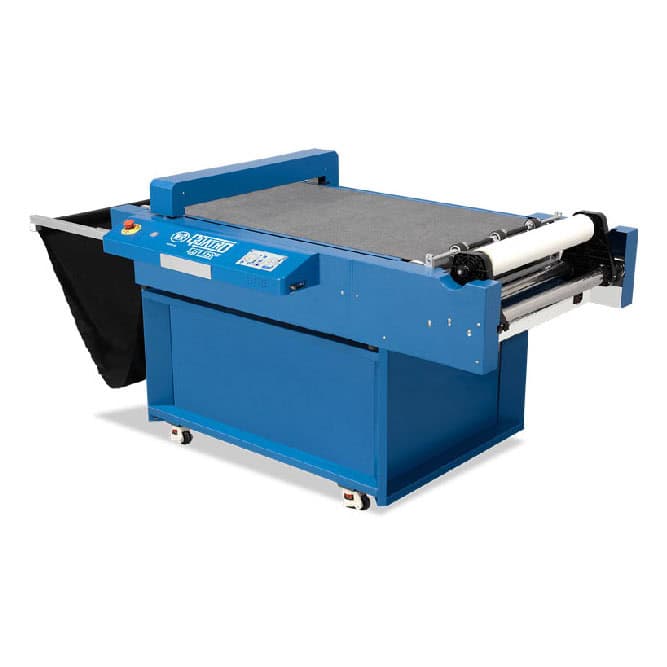

The M&R QUATRO CUTTER XY™ Direct to Film (DTF) Transfer Film Cutter is a versatile cutting system for the M&R QUATRO™ DTF Transfer Printing System. The QUATRO CUTTER XY is designed to automate PET film cutting after transfers are printed and cured on a QUATRO DTF printer. An M&R QUATRO DTF printer purchase is required to in order to purchase the QUATRO CUTTER XY.

The QUATRO CUTTER XY uses a blade on belt system for cutting along the X-Axis and Y-Axis of PET film at a speed of up to 68.5 cm (27") per second. PET film media is fed using a friction system and is held in place by vacuum suction. It also features digital camera support for crop mark and QR code detection. A 7" color touchscreen control panel allows users easy setup of cutting commands.

The QUATRO CUTTER XY is designed as a standalone cutting solution after the DTF transfer printing and curing process is complete.

Features

• Blade on belt system cuts printed and cured PET film on both the X-Axis and Y-Axis
• Maximum cut size: 63 x 86 cm (25" x 34")
• Connectivity: USB, LAN and WIFI



Quatro Cutter XY Brochure



Specs

Dimensions (L x W x H)	164 x 112 x 94 cm (65" x 44" x 37")
Electrical Requirements	120 VAC, 1 Ph, 7 A, 60 Hz (CUTTER XY) 120 VAC, 1 Ph, 13 A, 60 Hz (Vacuum Pump)
Shipping Weight	331 kg (730 lb)



More information.

If you would like more information then please give us a call on 0044 (0) 1562 829009 or use our Webchat or Email
