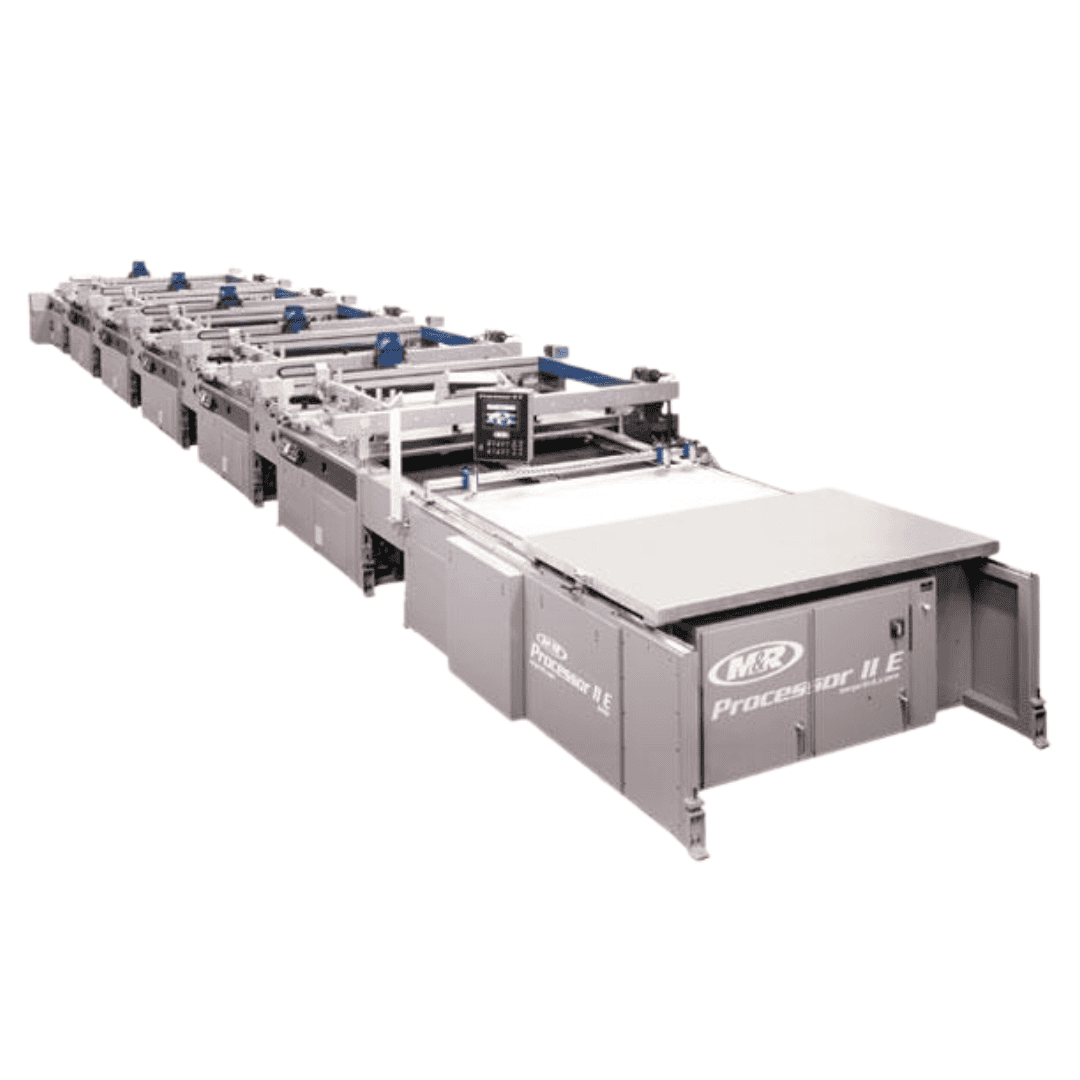

Processor II E™ is simply the finest inline multi-colour print/cure system available. It has larger four-post shafts and enclosed heavy-duty printheads with extrusions twice as wide as the previous generation. Features include master touch-screen control panels at the load and unload stations, with secondary touch-screen panels at each printhead. Printhead and UV settings can be controlled from any touch-screen. Processor II E can support up to eight cameras feeding video into an oversize display panel, allowing operators at the load and unload stations to closely monitor each printhead and the unloading process.

Electronic off-contact, print and flood speeds, front and rear carriage stop, and electronic peel are entered at any touch-screen. Electronic peel starts at zero from the starting position of the print stroke. Operators can use M&R’s Job Recall™ to store each print & cure parameter as an operator-named job, and then recall that job for subsequent print runs. Jobs can also be assigned a bar code, which can later be scanned from a master list or from the paperwork that accompanies print runs. M&R’s optional Zoned Vacuum System™ allows operators to quickly limit vacuum to the area under the substrate. Also available is M&R’s Heritage, a fully-adjustable suction-style takeoff that adapts to virtually any substrate.

Each dual-lamp UV head is independently controlled for optimum performance. M&R’s reflector technology directs reflected energy back to the substrate. It cools substrates by drawing ambient air across the substrate and venting heated air and ozone through open-top reflectors. Since Processor II E maximizes curing speed and minimizes substrate temperatures, operators can find a perfect match for virtually every curing requirement.



• Performance
  Servo-driven indexing • 2–6 colours (4 standard) • Production speed monitor
• Control System
  Touchscreen control panels • Plain-language interface • Microprocessor diagnostics • Job Recall™ settings storage • Bi-directional indexing
• UV Cure System
  Dual UV lamps • Independent UV heads • Recallable wattage settings • Lamp life timer
• Design & Build
  Handles poly banners to heavy board stock • Servo motors • Automatic chain & rail oiler • Four-post locking printheads
• Print Control
  Tool-free off-contact adjustment • Zero off-contact capability • Micro-registration system
• Print Mechanics
  Servo-driven carriage • Independent carriage drives • Digital stroke & speed control • Electronic peel system
• Screens & Ink
  Adjustable screen holders • Pneumatic clamps • Adjustable squeegee & floodbar • Ink dip system
• Registration & Loading
  Inline indexing table • Proprietary locator system • Moveable load table • Double-sided sheet locator
• Vacuum Bed
  CNC-drilled aluminium vacuum bed • Adjustable vacuum & blowback • High-volume turbine
• Support
  CE Certified • 24/7 hotline • Training centre access • 1-year warranty
