Description

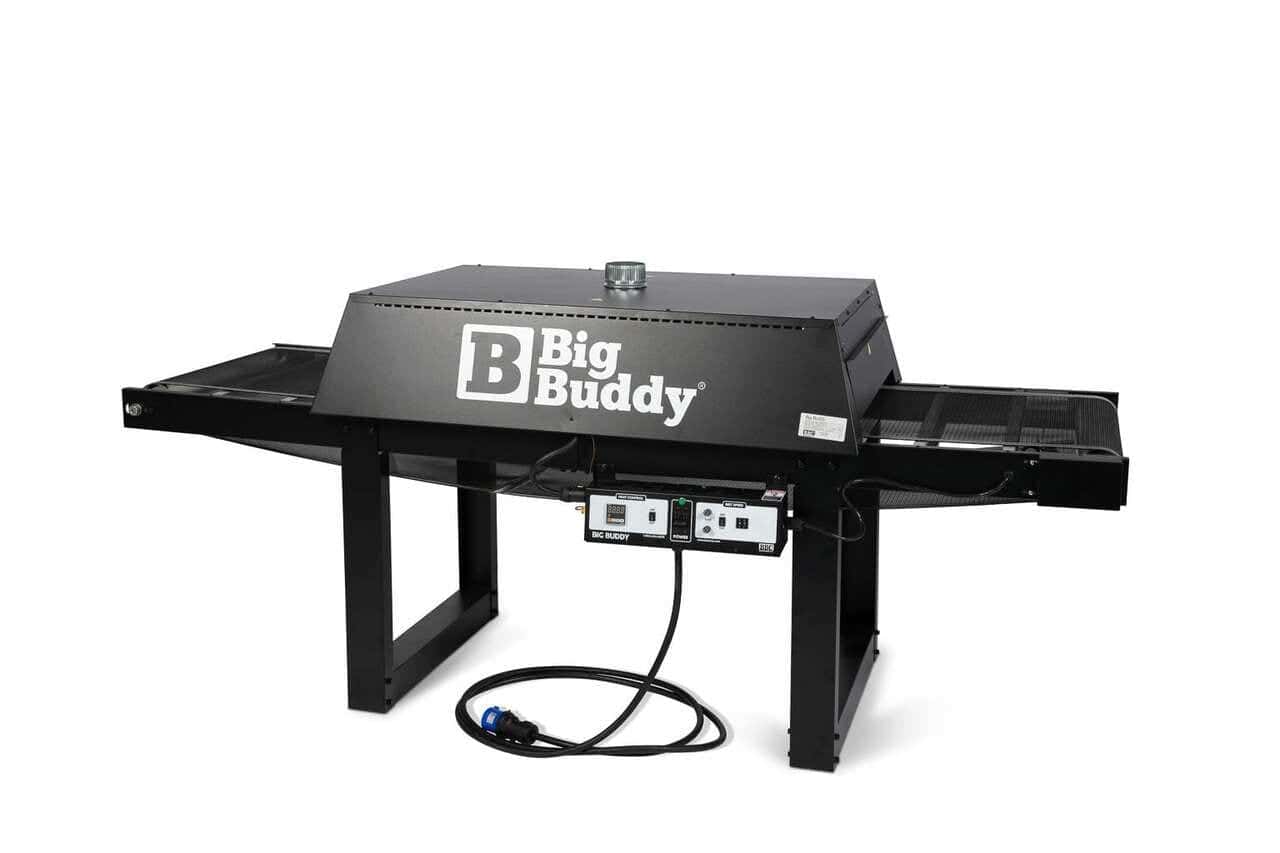

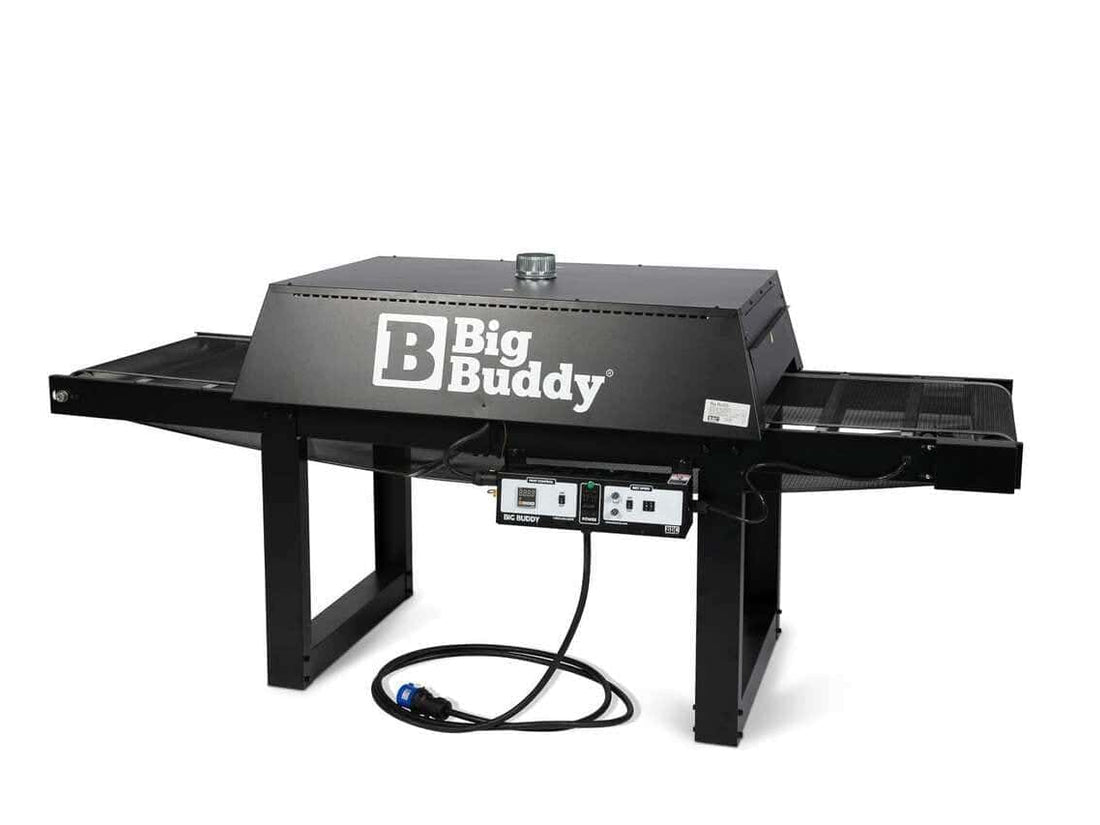

Looking for a new conveyor dryer that can keep up with production in a manual screen printing shop? The 8 foot Big Buddy III Conveyor is compact, lightweight and versatile. It is an ideal dryer for small shops needing some extra capacity. Featuring Black Body® heaters and a floating belt tracking guide, the Big Buddy III is designed to provide years of dependable and trouble-free service.

Features

• BigBuddyIII Product Specs: - Length: 8 ft - Width: 34” - Height: 44” - Belt width: 24” - Belt height: 33” - Belt drive
• Belt speed: 1-12 FPM
• Chamber length: 48”
• Capacity: 300 garments/hr - Heater
• dimensions: (2) 18 x 24
• Heater wattage: 6500
• Heater power required: 208 or 240v - 23.4 amps @ 208v, 27.0 amps @ 240v
• Heat control: non-digital Advantages: - 300 plastisol prints/hr - Auto plateau technology - 2 digit belt speed control - Hassle-free belt tracking - Single point power.
• What is auto plateau technology? Two finely tuned zones with custom coiled long wave infrared Black Body elements that guarantee a heat profile plateau.
• Quickly getting the shirt to curing temperature and then holding it there leads to greater wash-fastness no matter the ink line or thickness of print.
• BBC elements are also designed so the heat from belt edge-to-edge is nearly identical.
• Load your shirt any which way.
• Unlike the competition, the middle of the belt is not hotter than the edges.
• Auto plateau technology also makes curing water based inks easier without air flow.
• No longer is it necessary to run shirts through twice Possible 4 weeks lead time approximately.

This item is shipped in seperate boxes and requires assembly**
